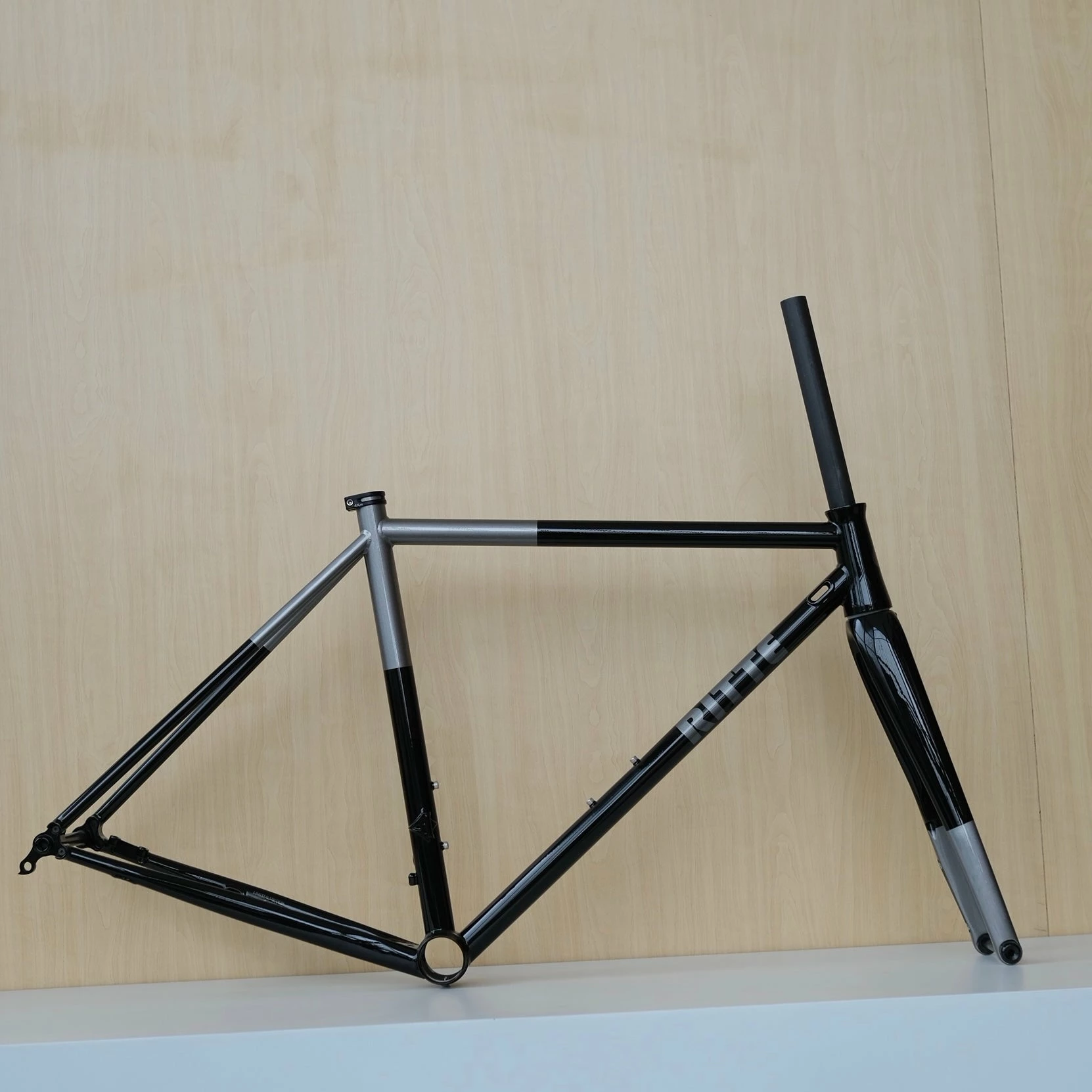

Ritte The Phantom Disc Frameset – Black/Silver

Elegant, silky, potent – the most desirable of human characteristics, now distilled into a machine. Welcome to our most capable road bike, your most capable road bike.

The Phantom is our steel All-Road bike. It’s got race pedigree in a package built out of custom specified Reynolds 725 tubing and designed by UCI World Championship winning frame builder Tom Kellogg. Aggressive does not need to mean harsh – we wanted a bike that smooths out the road in a way that only a silken Phantom could without losing the tenacity of a true road machine. This unique combination of geometry, tubing, and clearance for 32c tires ensure this is the first bike you reach for on any adventure.

Further outfitted with a T47 bottom bracket shell that allows room for entirely internal cable routing, flat mount disc brakes, and 12mm thru axles the Phantom accelerates and brakes with a potency admired by any racer. We dressed this two wheeled apparition in a paint scheme befitting of it’s elegance, so as not to overly intimidate any of its stablemates.

Specification:

• Tom Kellogg design
• Reynolds 725 tubing
• Differing tube diameters & tube wall thicknesses selected for each frame size to deliver tuned ride characteristics across all sizes
• Enve forks
• Differing fork rakes selected for each frame size to deliver tuned handling characteristics across all sizes
• T47 threaded bottom bracket
• Full internal cable routing (including internal through the bottom bracket area)
• Flat Mount Disc Brakes with clearance for 160mm rotors
• 32 mm tire clearance
• 27.2mm Seatpost
• IS42/47 Headset for 1 1/8″ (28.6mm) upper and 1.25 (33mm) lower

Frame Size	Height Range*
XS	5’0” – 5’4” (152 – 162CM)
S	5’3” – 5’8” (160 – 172CM)
M	5’6” – 5’10” (168 – 178CM)
L	5’9” – 6’2” (175 – 188CM)
XL	6’0” – 6’4” (183 – 193CM)
XXL	6’3”+ (190CM+)
