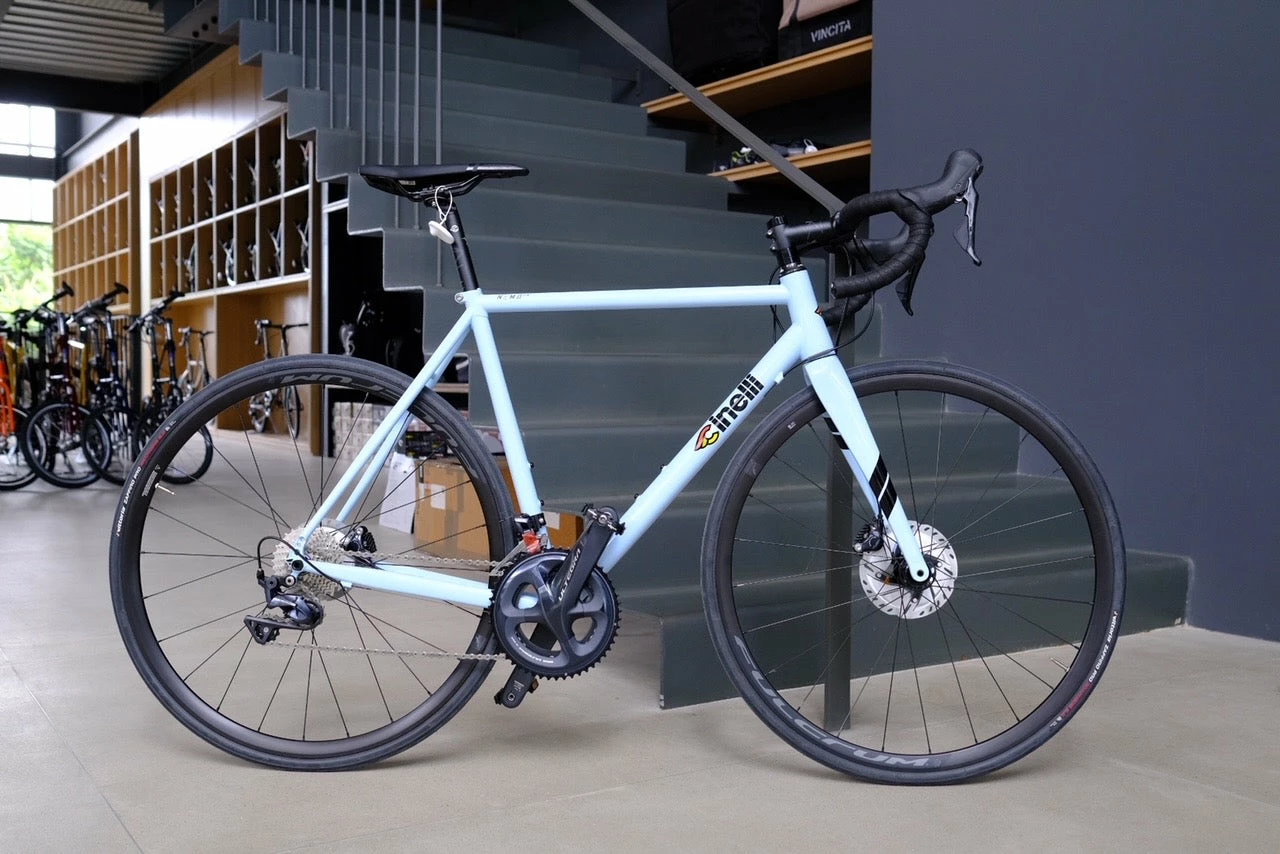

Cinelli Nemo Tig Road Disc Bike Shimano Ultegra – Blue Sky

The Nemo TIG is Cinelli’s latest Made in Italy high-performance steel road frame. It looks and rides the way in which the legendary Supercorsa – the world’s longest running production steel frame – might have looked had it been designed for racing today rather than in the 1950s.

The first prototypes of this frame were born according to the specifications of a recently retired Italian professional rider working at Cinelli who, seduced by the Columbus tubing being manufactured on the factory floor attached to the Cinelli offices, demanded that Cinelli produce a pure racing steel frame that took full advantage of the latest advances in high tech steel tubing manufacturing.

Accordingly the Nemo has been designed for riders used to riding high-end carbon fiber racing frames, unwilling to sacrifice “race feeling”, but looking for something incomparably pleasurable to ride in the way only a steel frame can be. It employs custom-shaped Columbus Spirit triple-butted tubes (the seat stays, for example, are the identical shape of those found on the original 1981 Cinelli Laser road model), with a highly contemporary 44mm mega-oversized downtube, conical CNC’d head tube and Columbus’ latest Futura straight blade monocoque carbon fiber fork.

Specifications:

• SIZES: XS (48) – S (51) – M (54) – L (56) – XL (59) – XXL (61) – Made to Measure
• FRAME: COLUMBUS SPIRIT HSS Tubeset
• HEADSET: IS 42/28,6 | IS 52/40
• SEAT POST: Ø 27,2mm
• SEAT CLAMP: Integrated
• BB STANDARD: BSA 68mm / Press Fit 86,5 x 41 (custom)
• FT. DERAILLEUR: Clamp Ø31,7mm
• CABLE ROUTING: External / Internal Hydraulic Disc brake housing
• TIRE CLEARANCE: up to 700x28c
• FORK: COLUMBUS FUTURA Disc 1-1/8” – 1-1/2”
• WEIGHT: Frame 1850 g (size M) – Fork 440g
• BRAKES STANDARD: Flat mount disc brake, Rotor size up to 160mm
• HUB SPACING: Rear TA Ø12x142mm / M12x1,5 L173mm skewer, Front TA Ø12x100mm / M12x1,5 L119mm skewer
• FRAME KIT: Front derailleur clamp / Front & Rear Skewer / Headset
• FEATURES: Columbus Extralight custom / Winged dropouts / Internal painting

Full Bike:

• STEM: CINELLI VAI Size 90 (XS/S) 100 (M) 110 (L/XL)
• HANDLEBAR: CINELLI VAI / Ø 31,8 / Drop 122,5mm Reach 74,5mm; Size 40 (XS/S), 42 (M/L/XL)
• CRANKSET: Shimano Ultegra / 52-36T, Size 170 (XS), 172.5 (S/M/L), 175 (XL) SEATPOST: CINELLI VAI / Ø27,2 / L350
• TAPE: CINELLI Cork
• BOTTOM BRACKET: Shimano BSA
• FT. DERAILLEUR: Shimano Ultegra
• BRAKES: Shimano Ultegra / 160mm Front rotor – 140mm Rear rotor
• CASSETTE: Shimano Ultegra / 11-30T
• REAR DERAILLEUR: Shimano Ultegra / 11 Speed
• SHIFTERS: Shimano Ultegra
• WHEELS: Fulcrum 600 DB
• TYRES: VITTORIA Zaffiro Pro / 700x28c
• HEAD SET: Integrated COLUMBUS Compass 1-1/8″ 1-½”
• CHAIN: Shimano Ultegra
• SADDLE: CINELLI SSM Squadra
